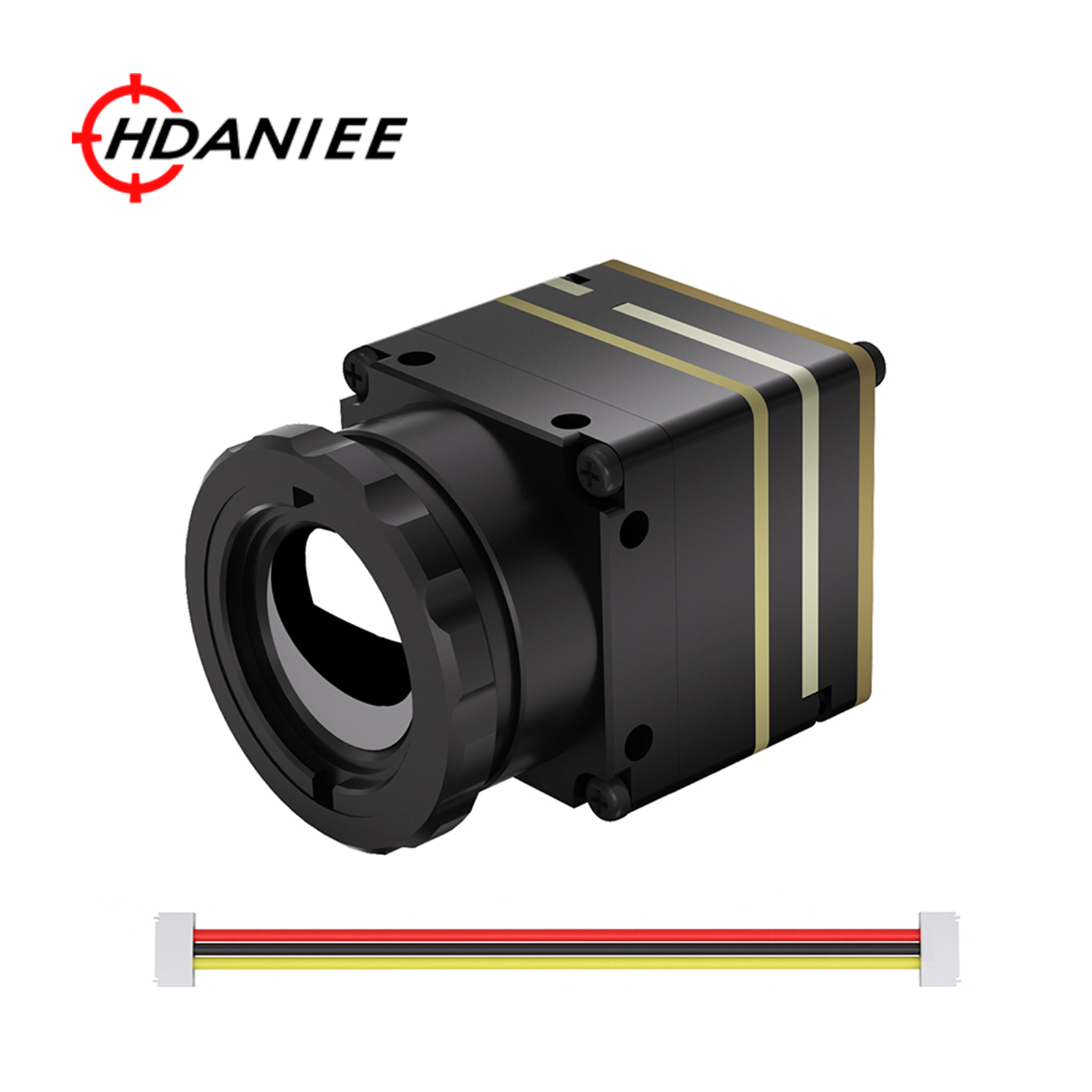

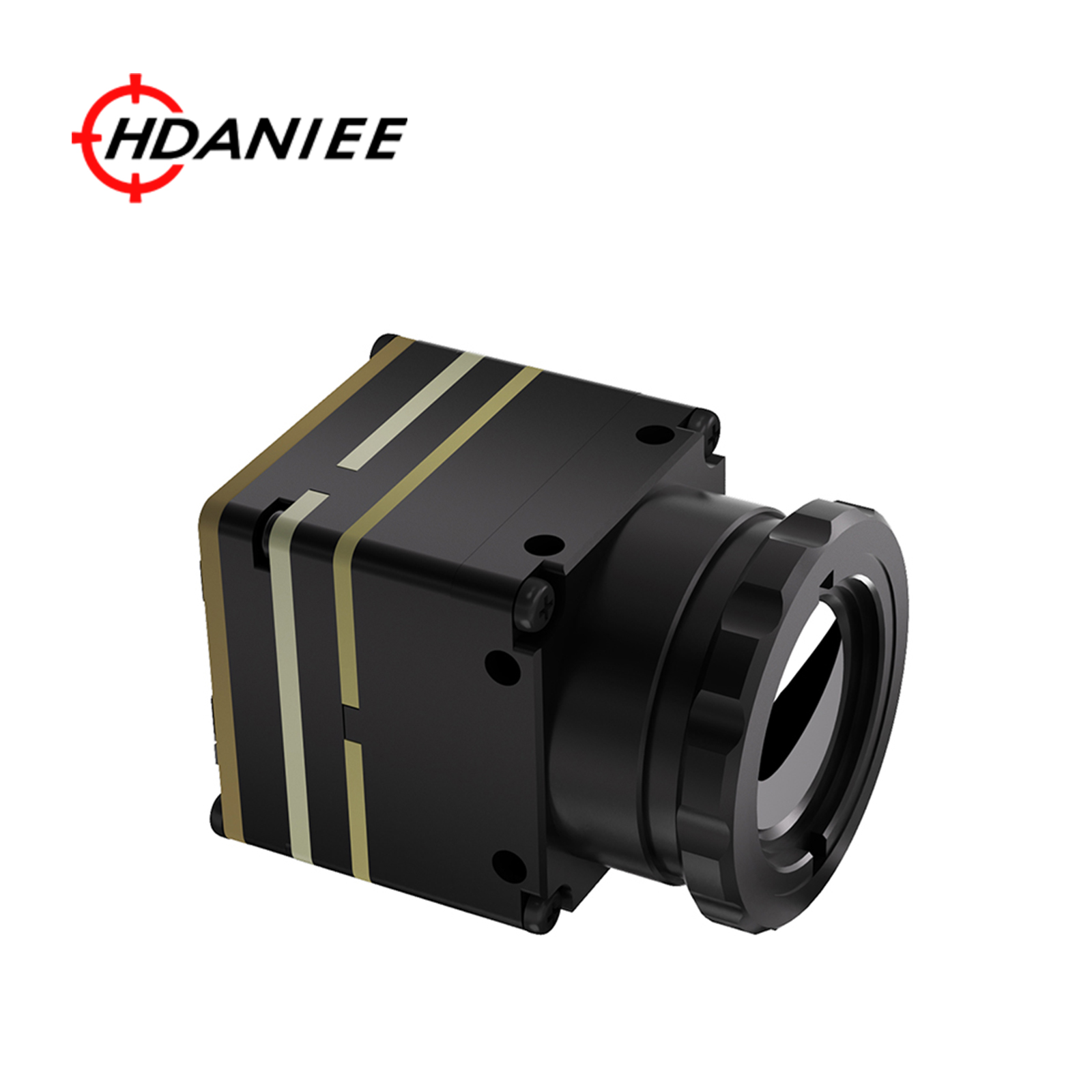

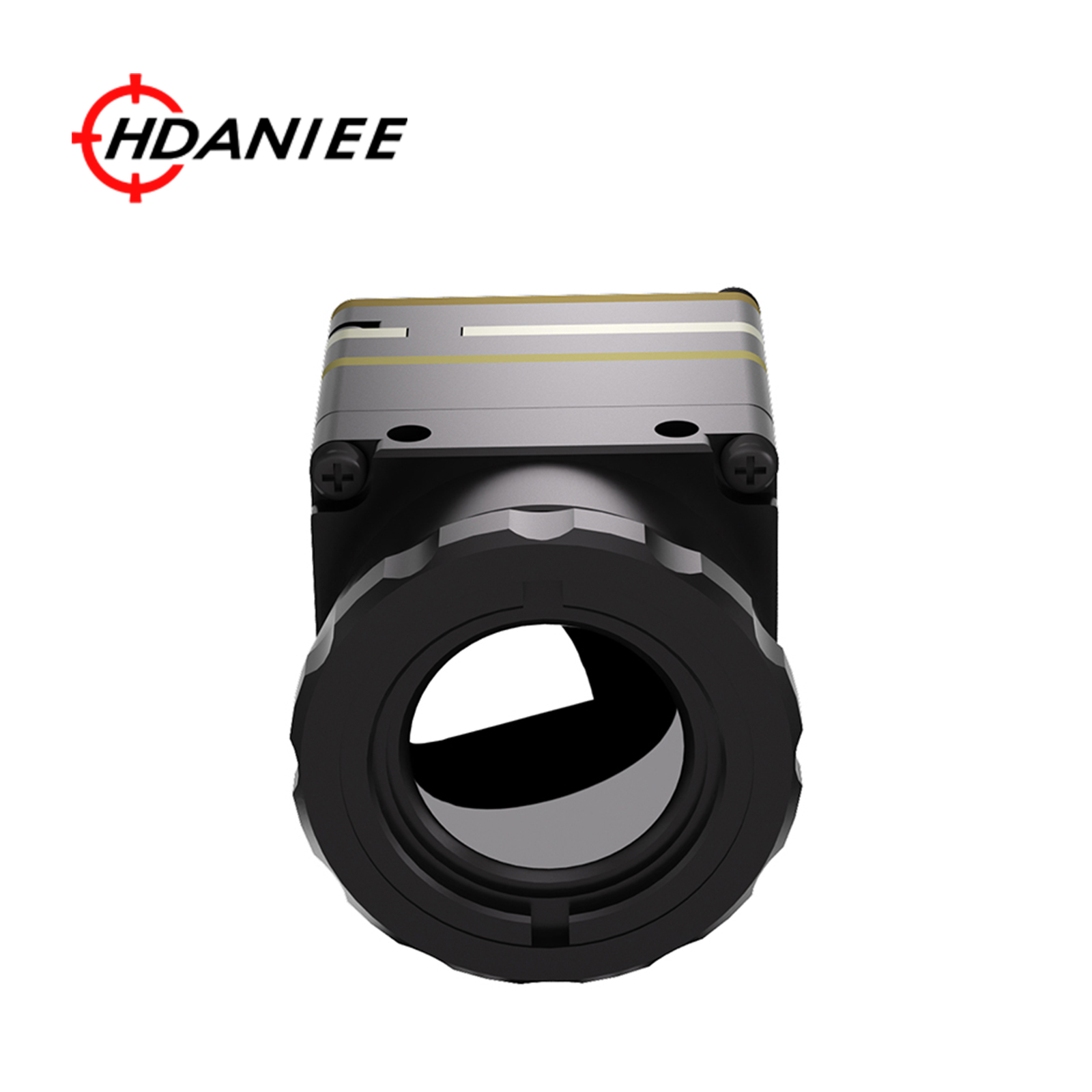

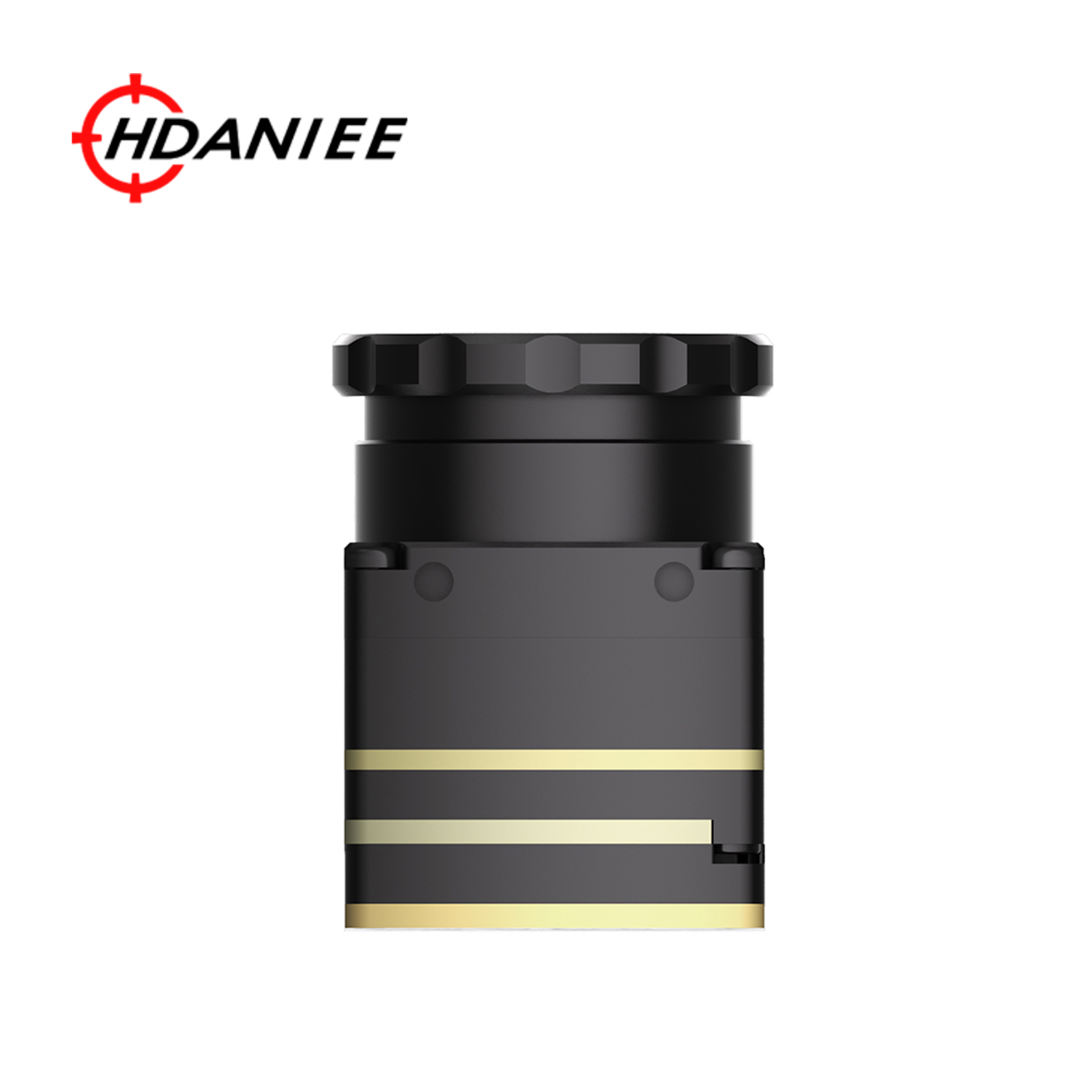

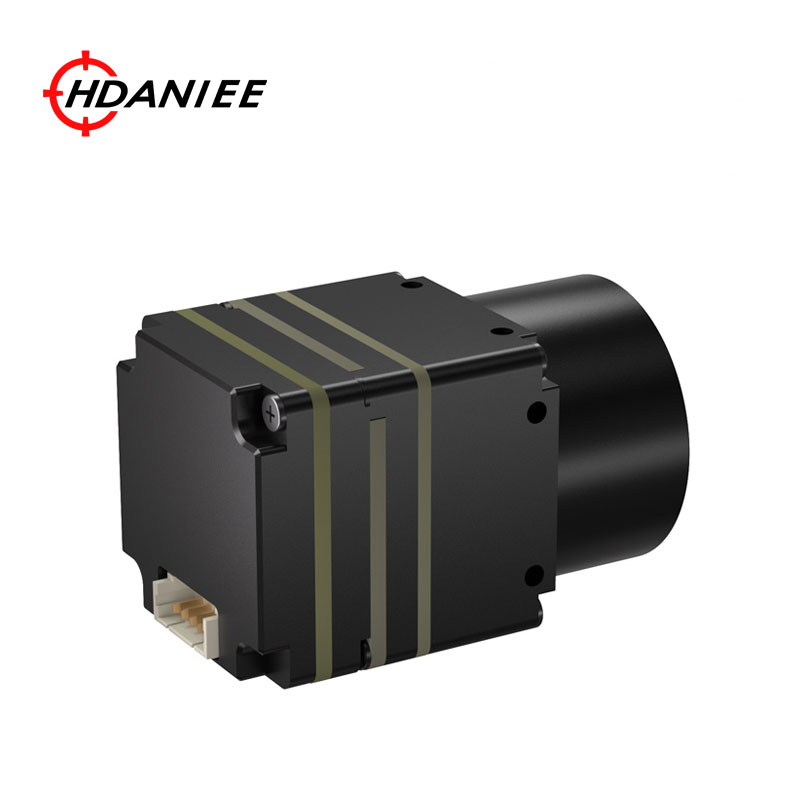

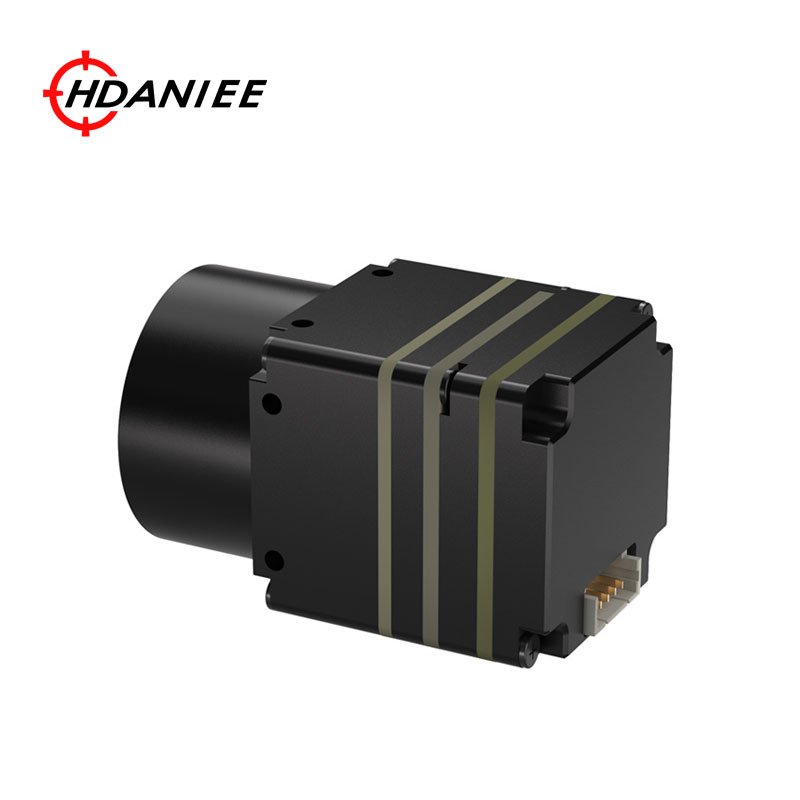

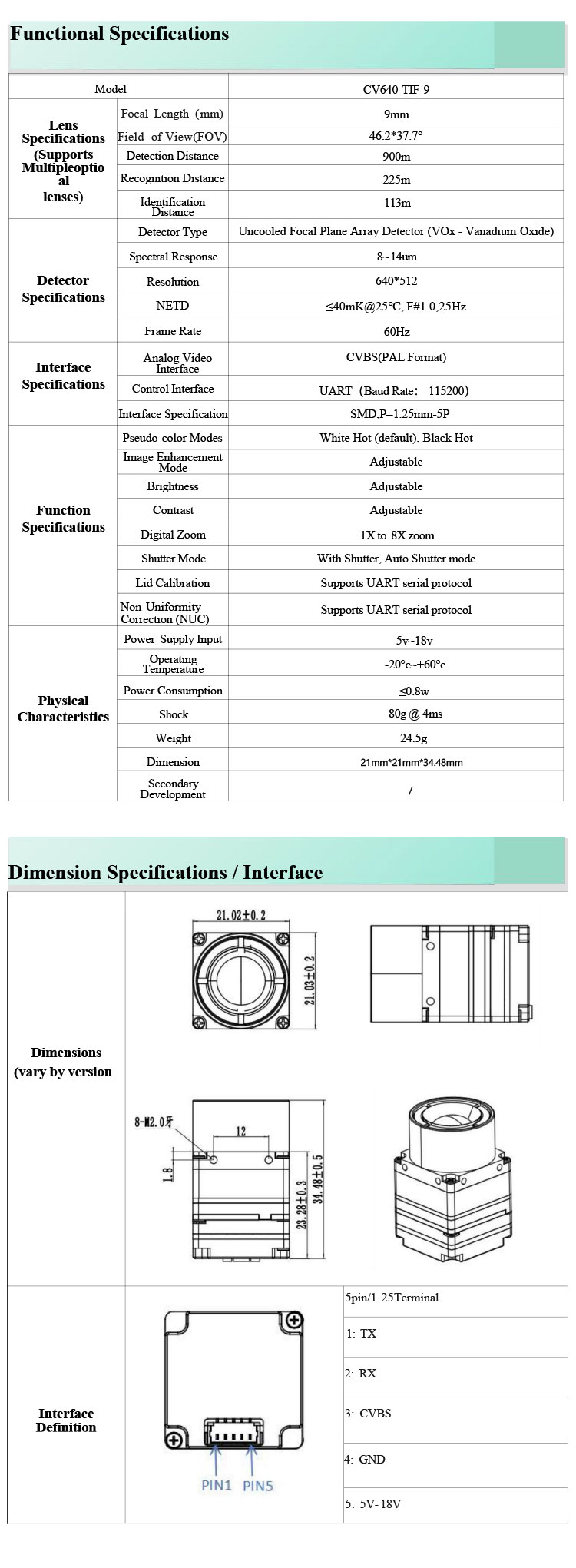

CV640-TIF Ultra-Light Thermal Imaging Core - 640x512 9mm 12μm 24.5g SWaP Module

The CV640-TIF is a multi-functional thermal imaging core designed for maximum mobility. Weighing only 24.5g and consuming less than 0.8W, it delivers a high-resolution 640x512 thermal feed, making it the premier choice for UAV gimbals, handheld night vision, and compact security integration.

• Key Features :

  • Ultra-Lightweight SWaP Design : At just 24.5g, it minimizes the load on mobile platforms and extends drone flight times.

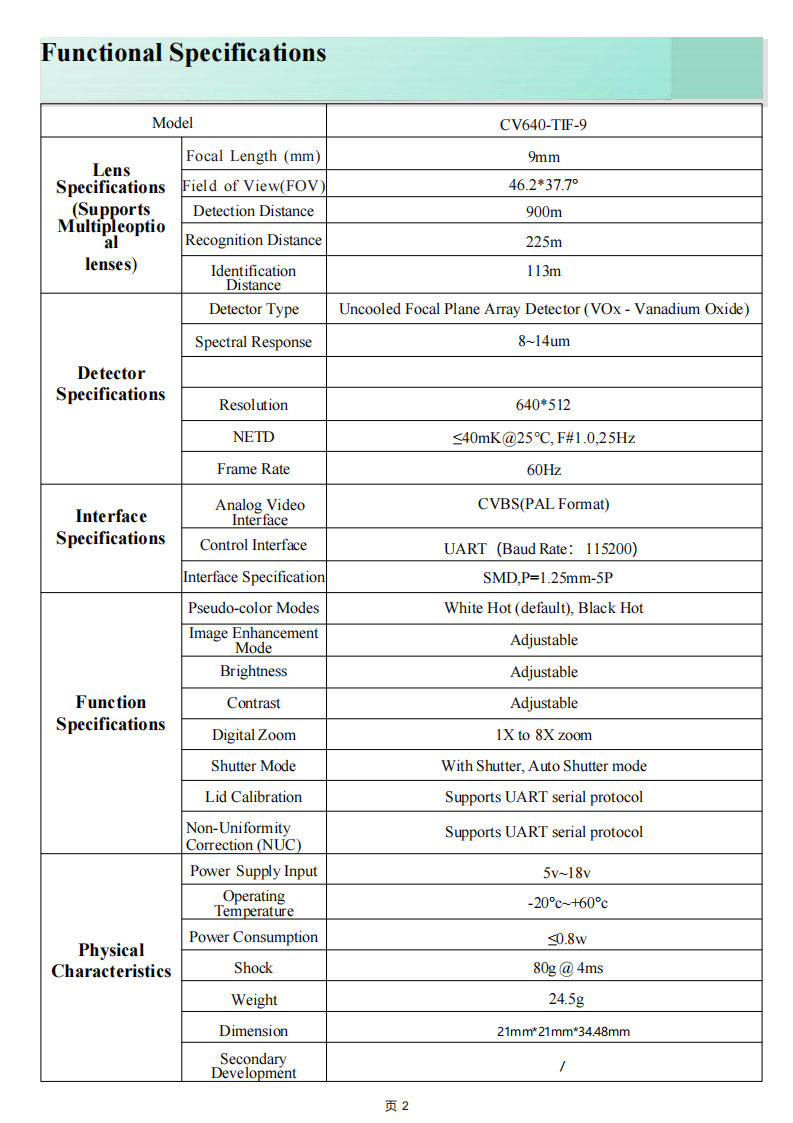

  • High-Resolution 640x512 Sensor : Equipped with a 12μm VOx detector for superior thermal detail and crisp imagery.

  • Extreme Energy Efficiency : Low power consumption of ≤0.8W significantly reduces battery drain and thermal dissipation issues.

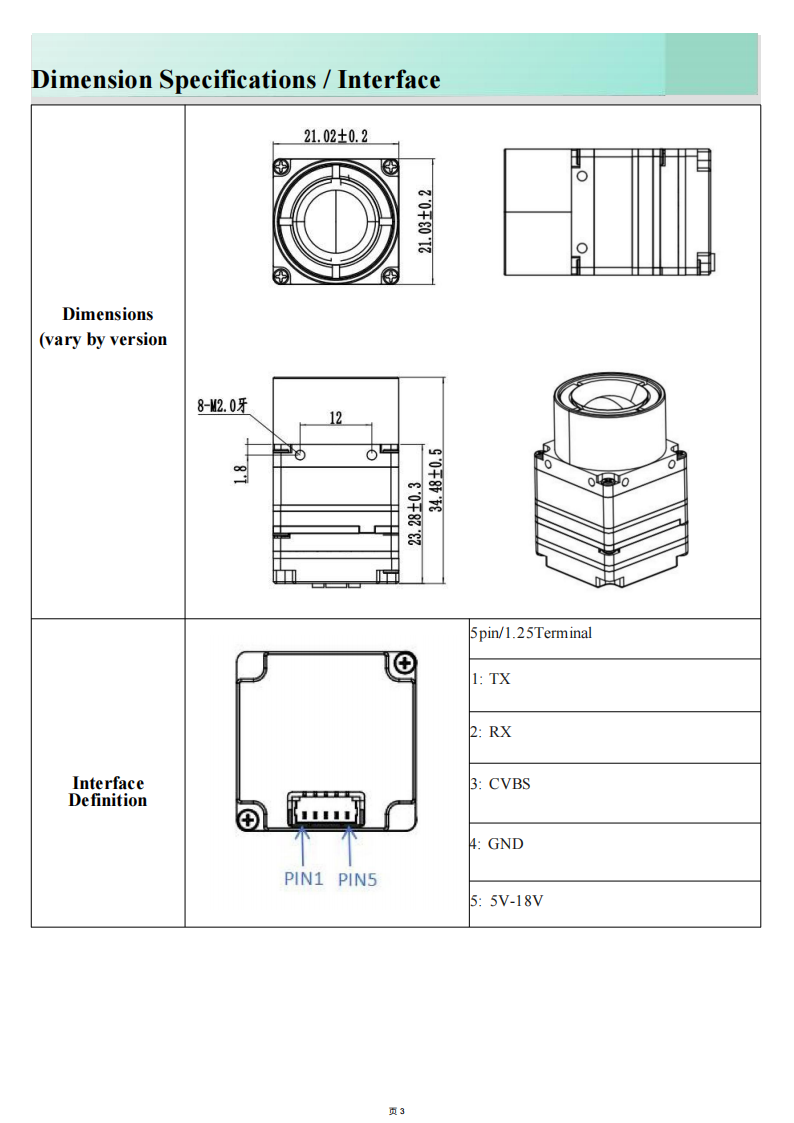

  • Simplified Connectivity : Features CVBS analog output and UART control for easy integration via a 5-pin 1.25mm interface.

  • Advanced Image Processing : Supports adjustable brightness, contrast, and 1X~8X digital zoom for optimal target identification.
