F1280 / F1920 High-Resolution Uncooled Thermal Imaging Module - 1280x1024 / 1920x1280 VOx Core

1. Product Overview

The F1280/F1920 Uncooled Thermal Imaging Module integrates a new generation of high-sensitivity VOx infrared detectors. It delivers high-performance processing cores, cutting-edge image algorithms, and precision lens control technology to provide a superior experience in long-range monitoring.

Designed for versatility, this module is widely applicable in perimeter security, high-altitude observation, forest fire prevention, maritime surveillance, industrial thermography, and railway monitoring.

2. Key Features

• Ultra-HD Resolution & Advanced Algorithms: Features large-format displays of 1280×1024 and 1920×1280. Upgraded with next-generation image algorithms optimized for specific environments like forests, sea surfaces, skies, and rainy/foggy weather to provide clearer, sharper infrared imagery.

• Versatile Lens Support: Supports athermalized fixed-focus lenses, motorized fixed-focus lenses, and continuous zoom lenses. Enables motorized focusing, continuous zoom, auto-focus, and defocus compensation.

• Rich Video Interfaces: Offers standard outputs including Ethernet (Network), LVCMOS, BT.1120, and MIPI. Expandable interfaces include SDI, USB, CameraLink, and HDMI to meet diverse integration needs.

• Efficient Development: Provides an easy-to-use SDK to shorten R&D cycles, improve efficiency, and reduce secondary development costs.



  Parameter	1280 Models	1920 Model
  Detector Type	Uncooled VOx Infrared Focal Plane Detector	Uncooled VOx Infrared Focal Plane Detector
  Pixel Pitch	12 μm	8 μm
  Resolution	1280 × 1024	1920 × 1080
  Frame Rate	50 Hz	30 Hz
  Spectral Range	8 ~ 14 μm	8 ~ 14 μm
  Thermal Sensitivity (NETD)	≤35 mK @25°C, F#1.0	—


  Image Adjustment


  Parameter	Specification
  Polarity	Black Hot / White Hot
  Pseudo Color	Supported (18 palettes)
  Digital Zoom	1.0× ~ 8.0× (step 0.1)


  Image Processing


  Function
  Non-uniformity Correction
  Brightness & Contrast Adjustment
  Temporal & Spatial Noise Reduction
  Digital Detail Enhancement
  Image Format Switching


  Image Orientation


  Function
  Flip (Horizontal / Vertical / Diagonal)




  Measurement & Alarm Functions

  Parameter	1280 Radiometric Model	Imaging Models
  Temperature Range	-20°C ~ 150°C / 0°C ~ 650°C	Not Supported
  Accuracy	±2°C or ±2% (@ -20°C ~ 60°C)	Not Supported
  Temperature Span	Supported	Not Supported
  Highlight Protection	Supported	—
  Fire Alarm	Supported	—




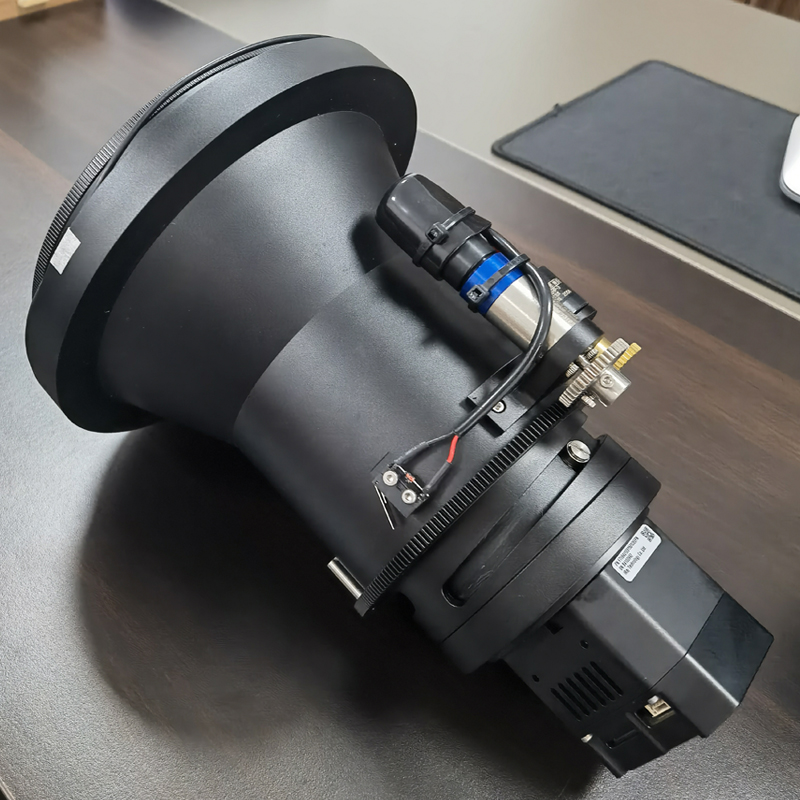

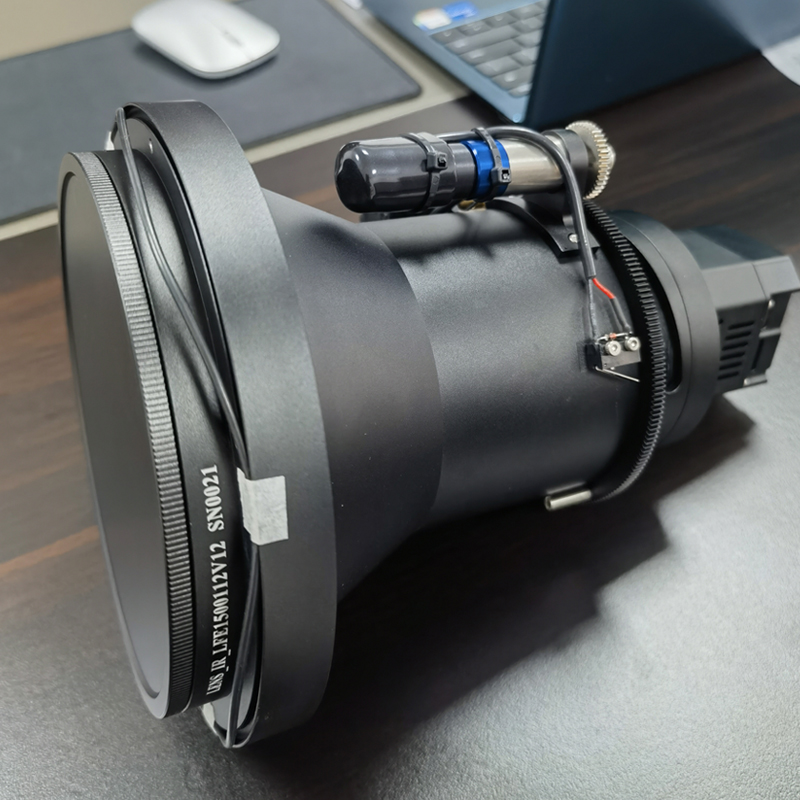

  Lens Control

  Parameter	Fixed Lens	Continuous Zoom Lens
  Lens Type	Fixed Focus / Manual Focus	Motorized Continuous Zoom Lens
  Lens Options	10mm / 19mm / 25mm / 35mm	Multiple options available
  Auto Focus	Not Supported	Supported (focus time ≤1s)
  Motorized Zoom	Not Supported	Supported
  Motorized Focus	Not Supported	Supported

  Power

  Parameter	Specification
  Input Voltage	5–24V DC (Recommended 12V DC)
  Protection	Reverse Polarity, Over-voltage, Under-voltage
  Power Consumption (@25°C)	≤2.8W

  Interfaces

  Parameter	Specification
  Video Output	LVCMOS / BT.1120 / MIPI
  Video Input	Supported
  Video Output (Dual)	Supported
  Communication Interface	RS-232 / RS-485 (PELCO-D Protocol Only)

  Mechanical Specifications

  Parameter	1280 Models	1920 Model
  Weight	89g ±5g (without lens)	165g ±5g (without lens)
  Dimensions	45mm × 45mm (±0.2mm)	55mm × 55mm (±0.2mm)

  Environmental Specifications

  Parameter	Specification
  Operating Temperature	-40°C ~ +70°C
  Storage Temperature	-45°C ~ +85°C
  Humidity	5% ~ 95%, Non-condensing

  Certification

  Parameter	Specification
  RoHS 2.0	Compliant





• Athermalized Lens Options (Fixed Focus)

  Array Size	Focal Length / F#	Lens Type	FOV (H × V)	IFOV
  1280×1024	8.7mm F1.2	Athermalized	90.45°×75.1°	1.379mrad
  1280×1024	10mm F1.2	Athermalized	77.82°×64°	1.200mrad
  1280×1024	19mm F1.0	Athermalized	46.53°×37.14°	0.632mrad
  1920×1080	19mm F1.0	Athermalized	44.02°×25.62°	0.421mrad
  1280×1024	25mm F1.0	Athermalized	34.1°×27.6°	0.480mrad
  1920×1080	25mm F1.0	Athermalized	34.15°×19.61°	0.320mrad
  1280×1024	35mm F1.0	Athermalized	25.1°×20.1°	0.343mrad
  1920×1080	35mm F1.0	Athermalized	24.75°×14.07°	0.229mrad
  1280×1024	55mm F1.0	Athermalized	16.0°×12.8°	0.218mrad
  1920×1080	55mm F1.0	Athermalized	15.9°×9°	0.145mrad
  1280×1024	75mm F1.0	Athermalized	11.7°×9.4°	0.160mrad
  1920×1080	75mm F1.0	Athermalized	11.69°×6.59°	0.107mrad

  ---

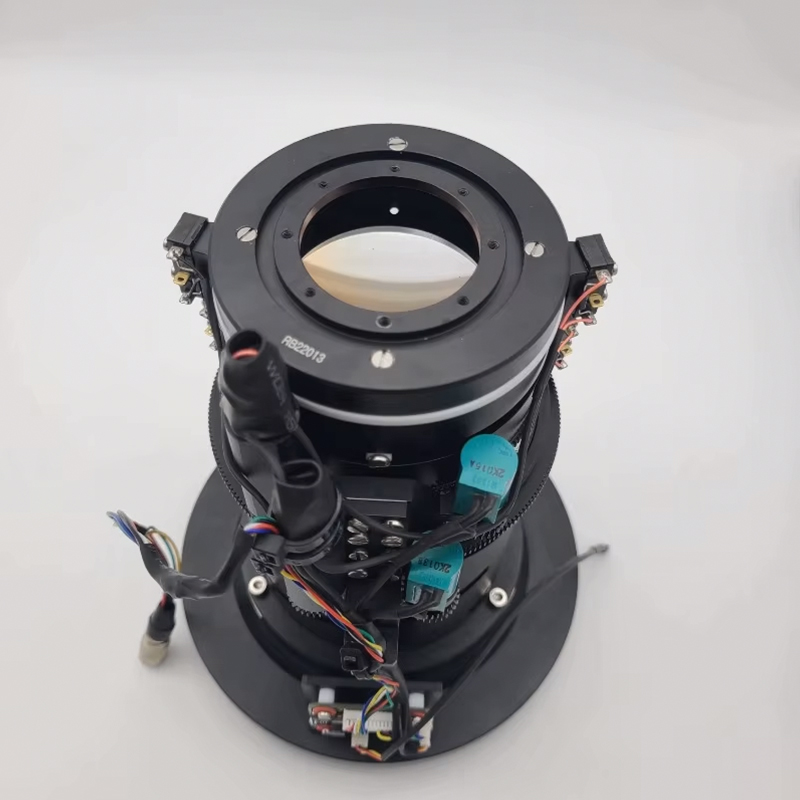

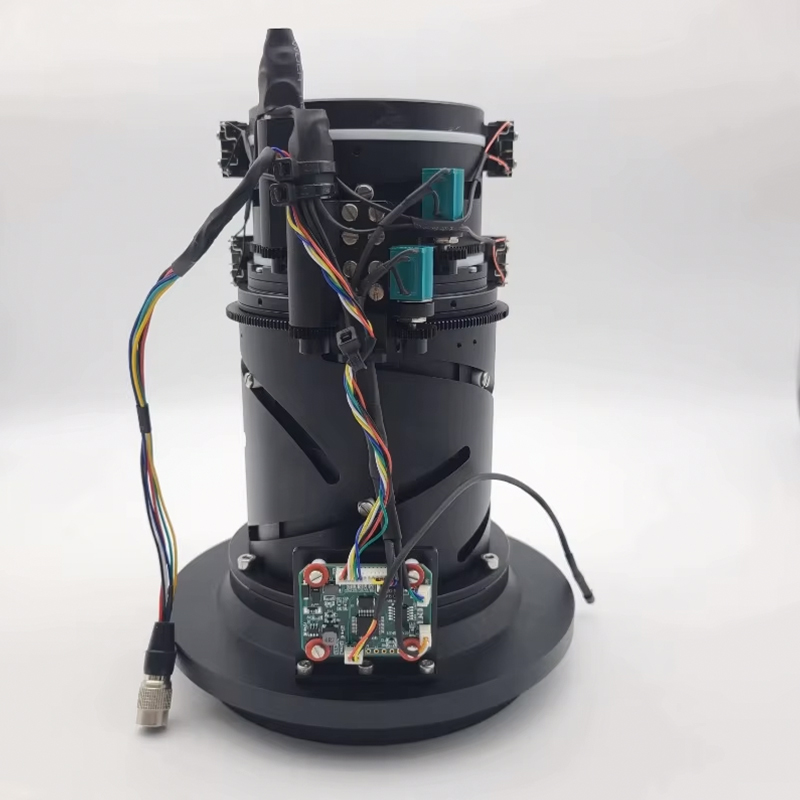

  Table 2: Motorized Lens Options (Focus / Zoom)

  Array Size	Focal Length / F#	Lens Type	FOV (H × V)	IFOV
  1280×1024	25mm F1.0	Motorized Focus	34.1°×27.6°	0.480mrad
  1280×1024	75mm F1.0	Motorized Focus	11.04°×9.37°	0.160mrad
  1920×1080	75mm F1.0	Motorized Focus	11.69°×6.59°	0.107mrad
  1280×1024	100mm F1.0	Motorized Focus	8.78°×7.03°	0.120mrad
  1920×1080	100mm F1.0	Motorized Focus	8.78°×4.95°	0.080mrad
  1280×1024	150mm F1.2	Motorized Focus	5.53°×4.69°	0.080mrad
  1920×1080	150mm F1.2	Motorized Focus	5.86°×3.3°	0.053mrad
  1280×1024	25mm~75mm F0.95~F1.2	Continuous Zoom	11.6°×9.3° ~ 36.7°×28.9°	0.160~0.480mrad
  1920×1080	25mm~75mm F0.95~F1.2	Continuous Zoom	11.69°×6.59° ~ 34.15°×19.61°	0.107~0.320mrad
  1280×1024	30mm~150mm F1.0~F1.2	Continuous Zoom	5.8°×4.6° ~ 29.4°×23.5°	0.080~0.400mrad
  1920×1080	30mm~150mm F1.0~F1.2	Continuous Zoom	5.86°×3.3° ~ 28.72°×16.39°	0.053~0.267mrad
  1280×1024	25mm~225mm F1.09~F1.5	Continuous Zoom	3.85°×3.09° ~ 36.07°×28.68°	0.053~0.480mrad
  1920×1080	25mm~225mm F1.09~F1.5	Continuous Zoom	3.85°×2.18° ~ 36.1°×20.1°	0.036~0.320mrad
  1280×1024	35mm~350mm F1.09~F1.5	Continuous Zoom	2.5°×2.0° ~ 25.1°×2
