In recent years, various hotels have been equipped with miniature cameras, posing a threat to people's privacy. Various countries have also controlled and stopped such behavior. However, the miniature camera is too concealed and difficult to detect. Our thermal imaging mobile phone plugin is a convenient and practical tool that can locate cameras hidden in various corners through heat sources to ensure our privacy.
Key Features
● 256x192, 12μm Vanadium Oxide Uncooled Sensor;
● Type-C, Download the application on Phone
● Manual focus, Digital Zoom 1x 2x 4x 8x magnification;
● Battery capacity is 3000 mAh to keep more than 8 hours to work

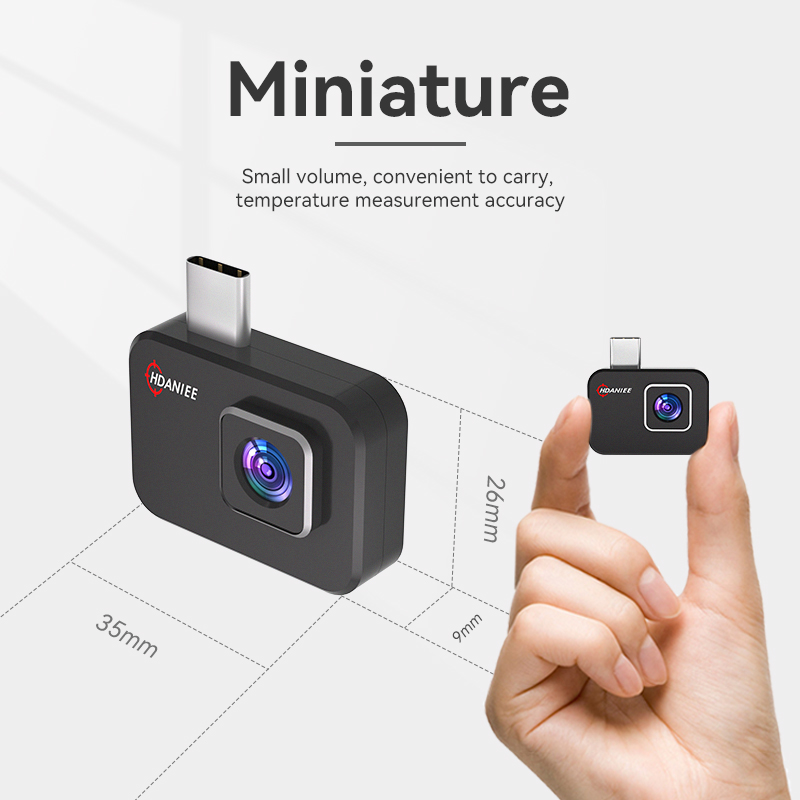

● Small & light weight, easy to carry;
| Detection Range - Large Animals: | 800 |
| Recognition distance - large animals: | 200 |
| Detection Range-Small animals: | 320 |
| Recognition distance-Small animal: | 80 |
| Pseudo color mode: | White heat |
| Language: | English |
| Resolution: | 256*192 |
| Weight: | 6G |

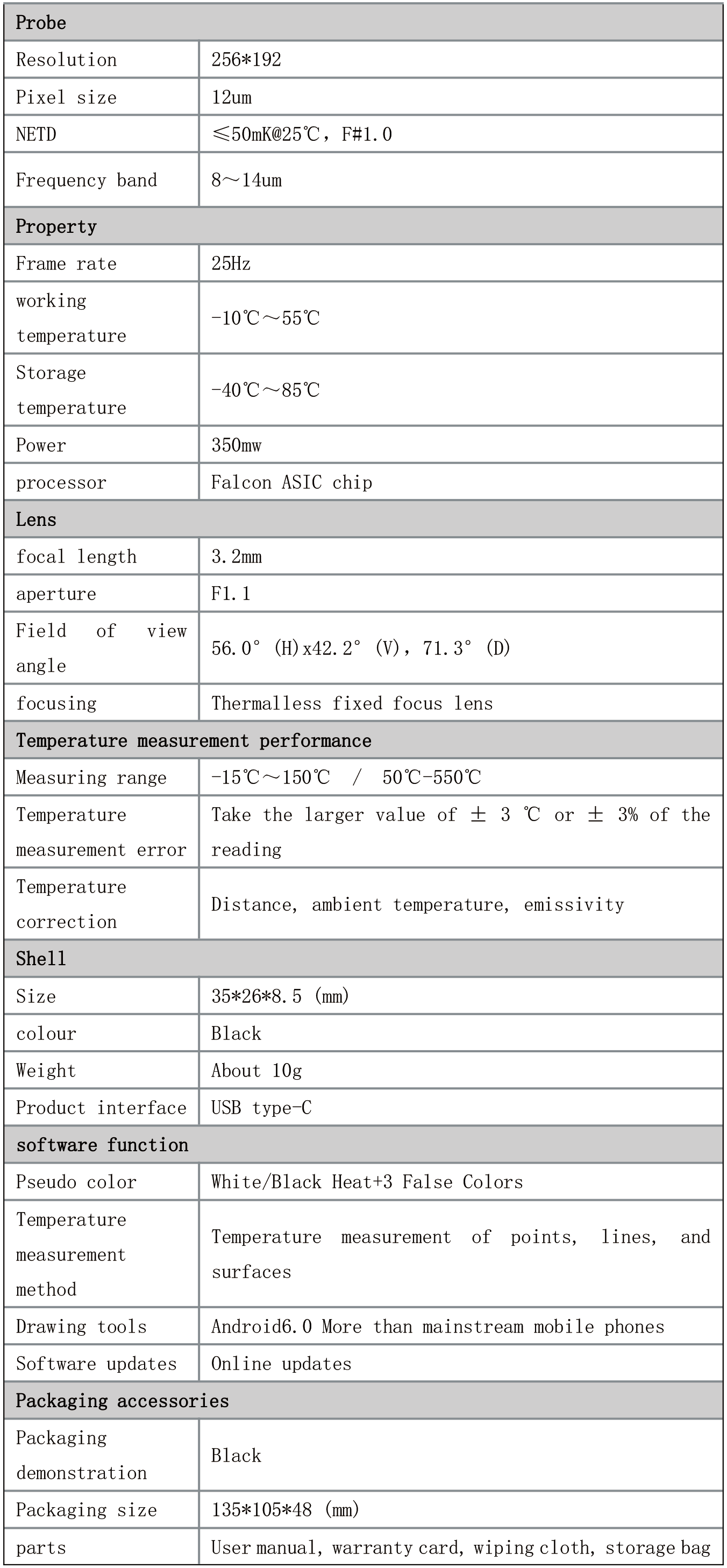

| Detector | |
| Resolution | 256x192 |
| Pixel Pitch | 12μm |
| NETD | ≤50mK@25ºC,F#1.0 |
| Operating Band | 8~14um |
| Performance | |
| Frame Rate | 25Hz |
| OperatingTemperature | -10°C-55ºC |
| Storage Temp | -40°C-85ºC |
| Power Consumption | 350mW |
| Processor | Self-developed ASIC chip |
| Lens | |
| Focal Length | 3.2mm |
| Aperture | F1.1 |
| FOV | 56.0*x42.2 |
| Focusing Mode | Athermalized fix-focus lens |
| Temperature Measurementnt | |
| Measurement Range | -20ºC-170ºC |
| Measuring Error | ±2°C or ±2% of reading (the bigger value shall prevail) |
| Temperature Correction | Emissivity,distance,environmental temperature |
| Shell | |
| Size | 32x18x9.8(mm) |
| Color | BLACK |
| Weight | 10g |
| Interface | USB type C |
| Software Function | |
| Palette | White/black-hot+6pseudo colors |
| Measurement Mode | Point/line/area temperature measurement |
| Information Sharing | Instant picture sharing |
| Data Analysis | Secondary temperature analysis and processing of images |
| Imaging Tool | Android 6.0 and above |
| Software Update | Online update |
