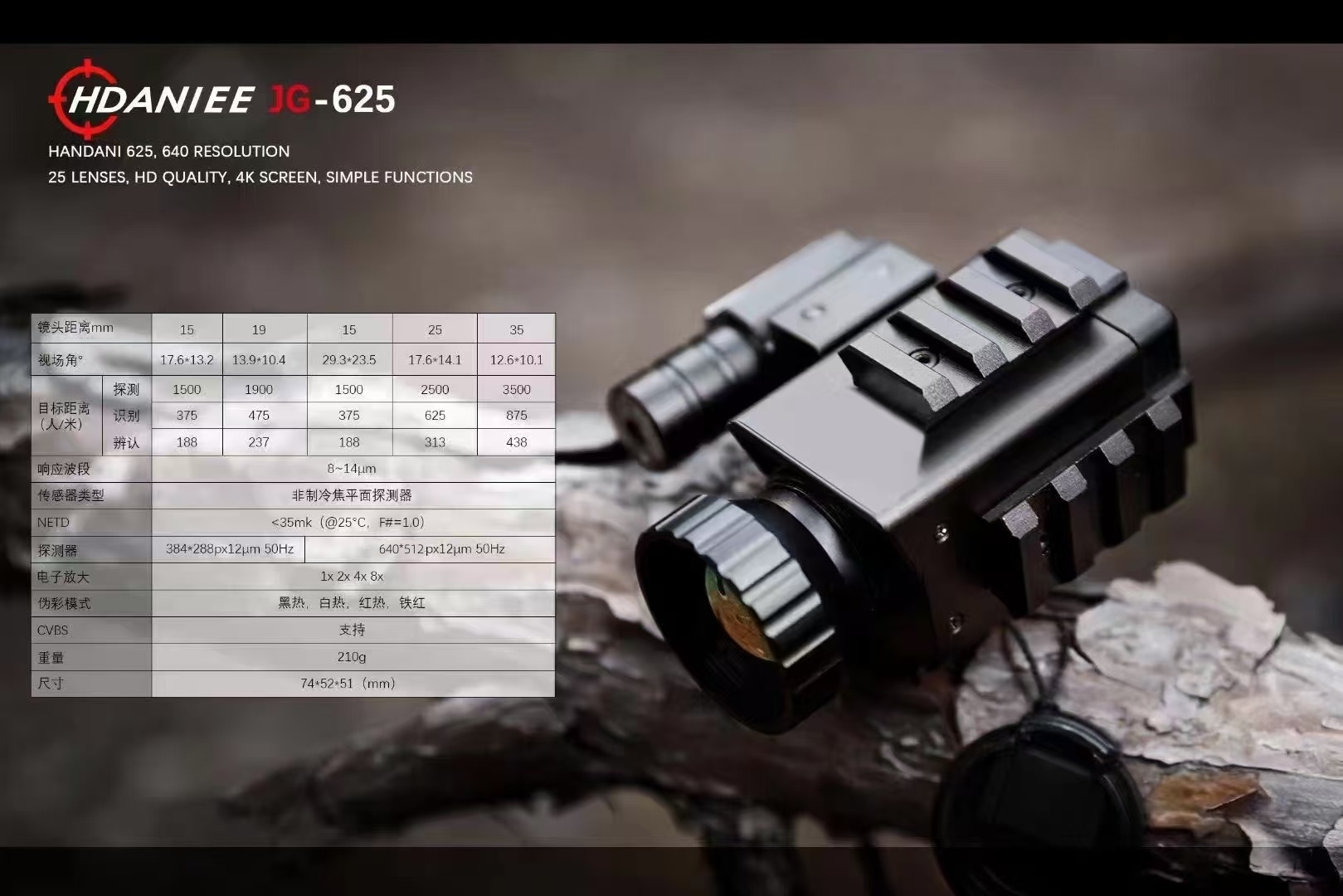

Specifications：
| Focal Length (mm) | 15 | 19 | 15 | 25 | 35 | |
| Field of View (°) | 17.6° × 13.2° | 13.9° × 10.4° | 29.3° × 23.5° | 17.6° × 14.1° | 12.6° × 10.1° | |
| Range (Human/m) | Detection | 1500 | 1900 | 1500 | 2500 | 3500 |
| Recognition | 375 | 475 | 375 | 625 | 875 | |
| Identification | 188 | 237 | 188 | 313 | 438 | |
| Spectral Range: | 8–14 μm | |||||
| Detector Type: | Uncooled Focal Plane Array (FPA) | |||||
| NETD: | < 35 mK (@25°C, F# = 1.0) | |||||
| Detector： | 384×288 pixels, 12 µm pitch, 50 Hz | 640×512 pixels, 12 µm pitch, 50 Hz | ||||
| Digital Zoom: | ×1, ×2, ×4, ×8 | |||||
| Pseudo-Color Modes: | Black Hot, White Hot, Red Hot, Iron Red | |||||
| CVBS Output: | Supported | |||||
| Weight: | 210g | |||||
| Dimensions: | 74 mm × 52 mm × 51 mm | |||||
