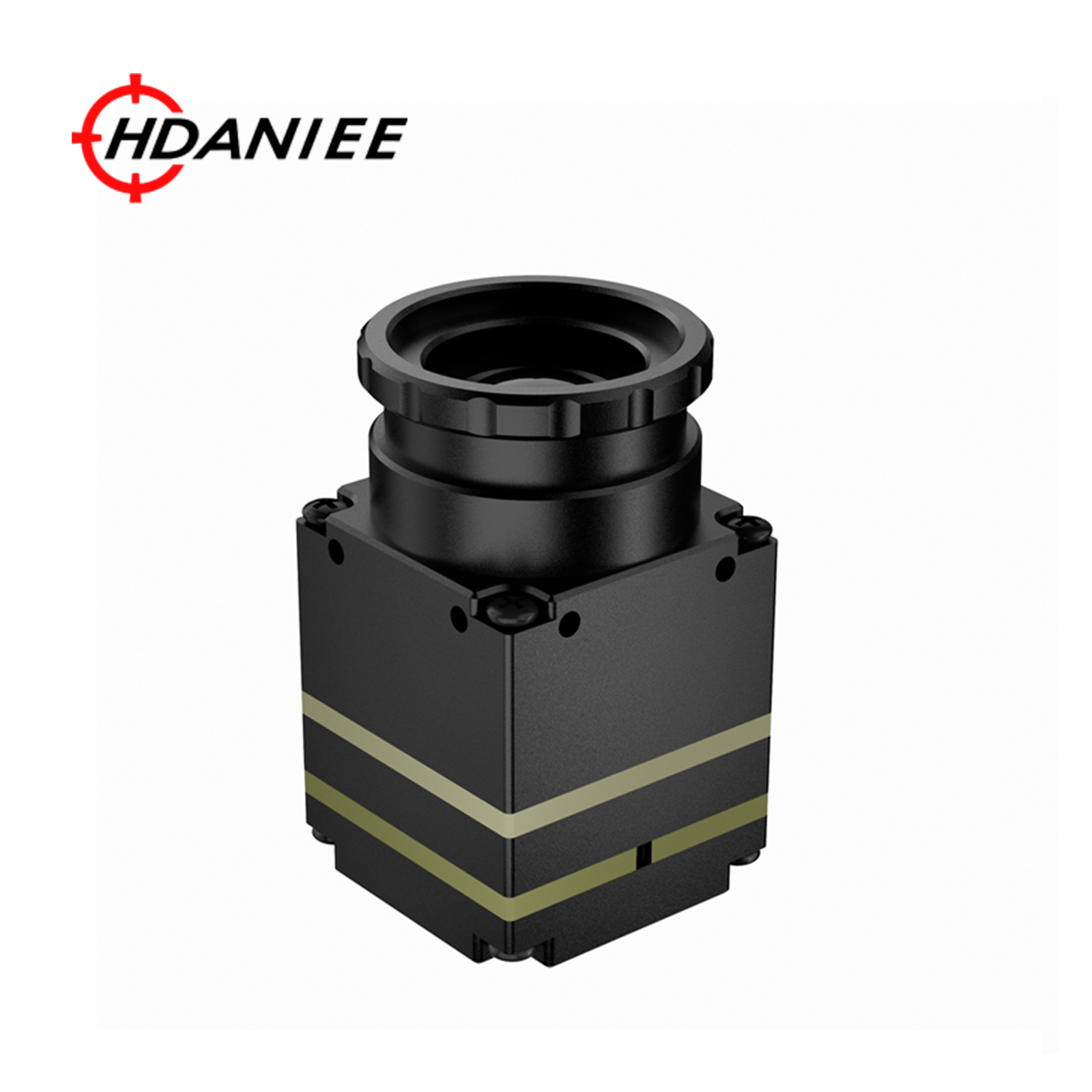

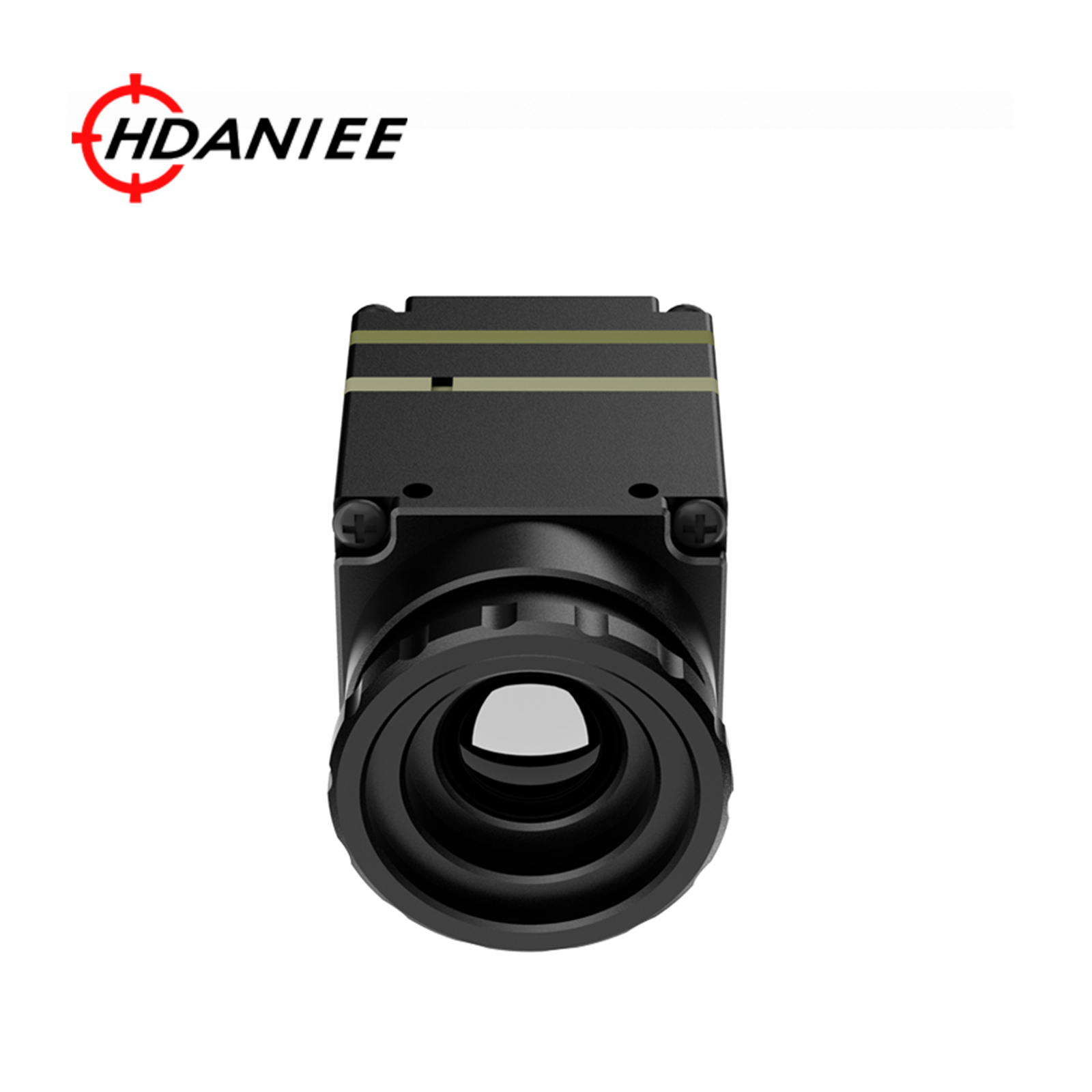

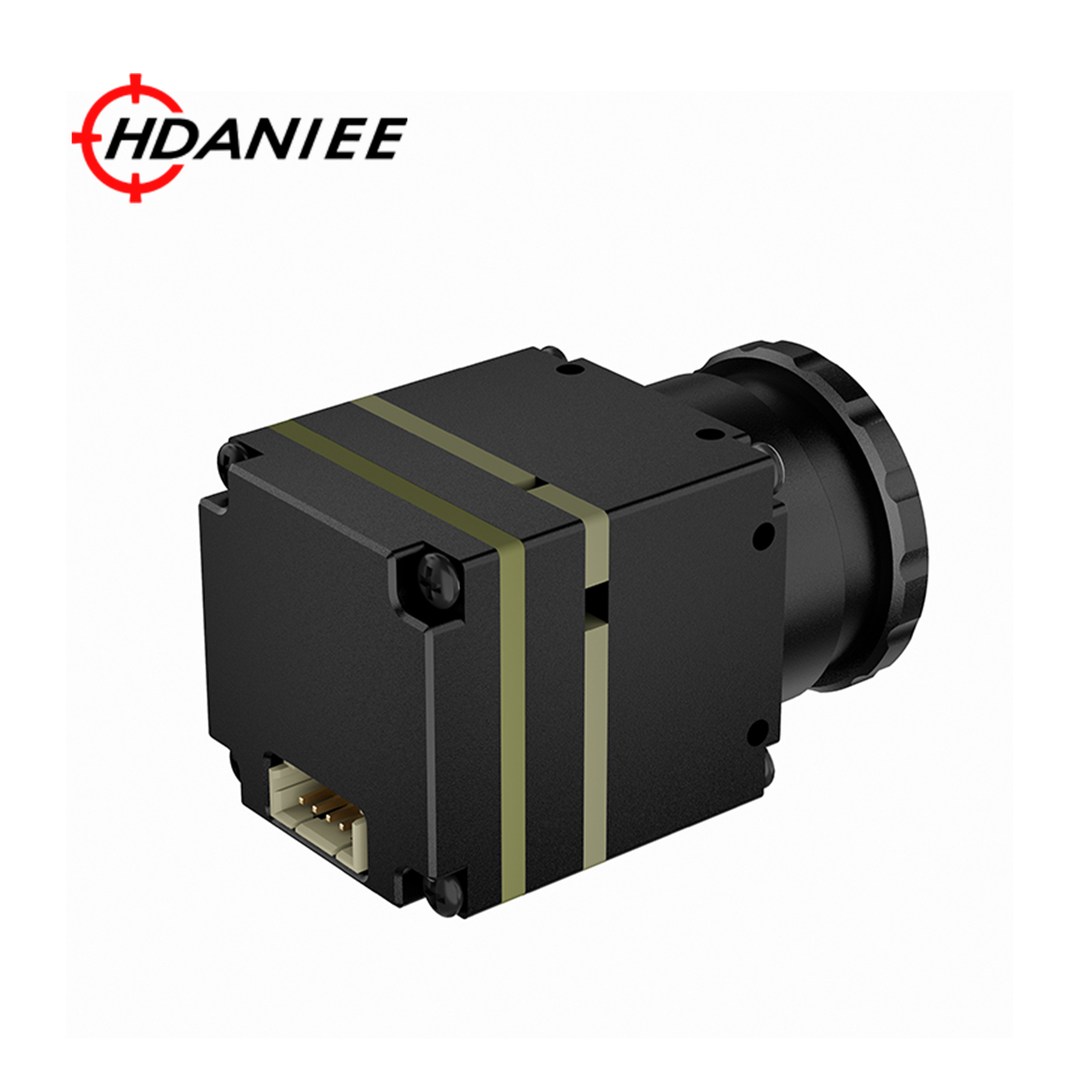

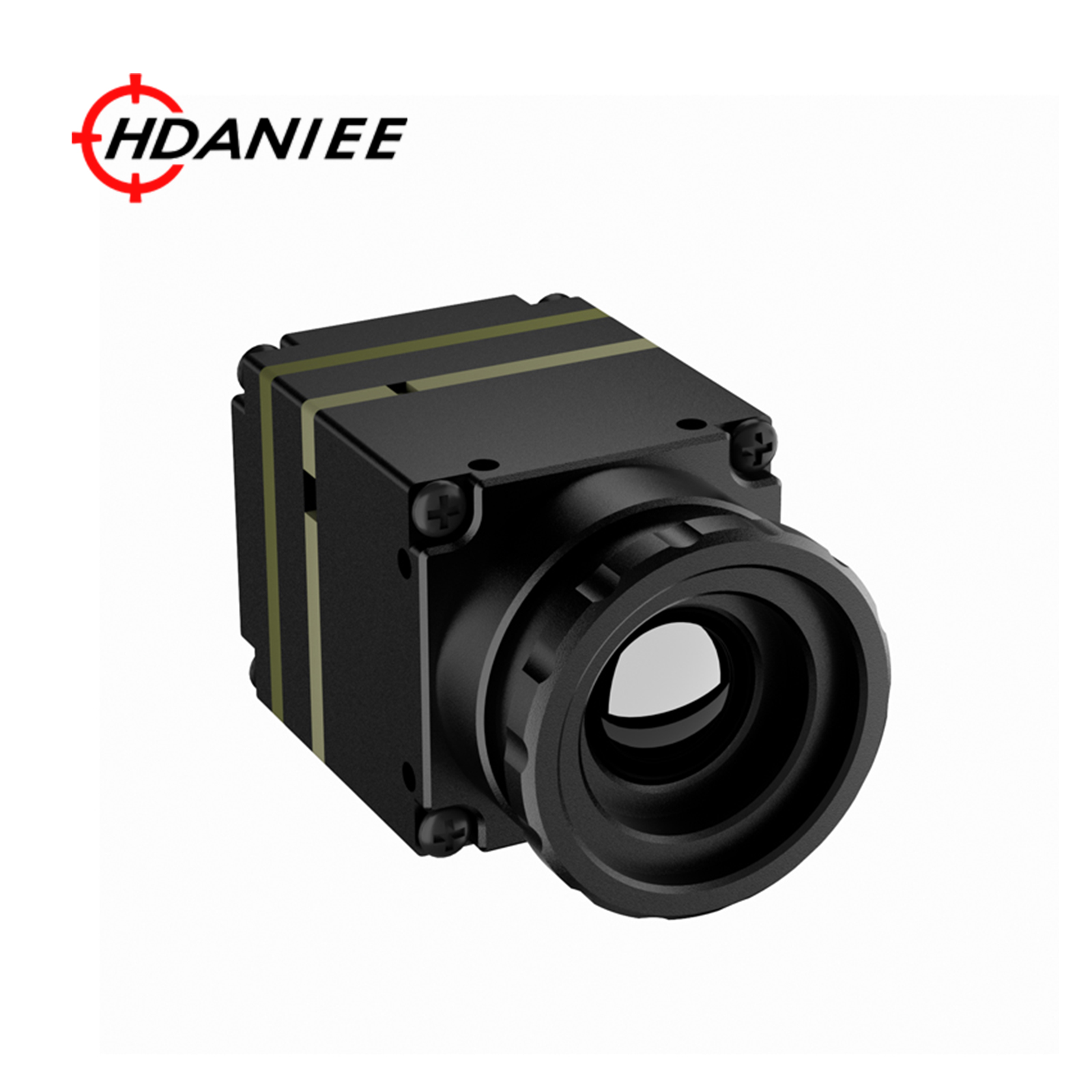

N6-CY 640x512 Thermal Imaging Module

The N6-CY-9 is a professional grade thermal module featuring a high density 640x512 resolution and 12um pixel pitch. With its ultra low power consumption of less than 0.6W and wide voltage compatibility, it is the ideal choice for long endurance UAV missions and handheld infrared devices.

• High Definition 640x512 Clarity Utilizes an advanced VOx uncooled sensor to deliver sharp and detailed thermal images, ensuring precise target identification in total darkness or through smoke.

• Ultra Low Power Consumption Engineered for efficiency, the module consumes less than 0.6W, significantly extending the battery life of portable systems and airborne platforms.

• Wide Voltage Input Support Supports a broad power range from 4.5V to 27V. This allows direct connection to various battery types without the need for additional voltage regulators.

• Fluid 50Hz Real Time Video The high frame rate ensures smooth and lag free imaging, which is critical for tracking fast moving targets and maintaining real time situational awareness.

• Long Range Detection Performance Equipped with a 9mm professional lens, it can detect human sized targets at up to 900 meters, providing professional level surveillance capabilities.

• Compact and Lightweight Design Weighing only 26.5g with a 21x21mm footprint, it is designed for easy integration into space constrained housings and stabilized gimbals.
