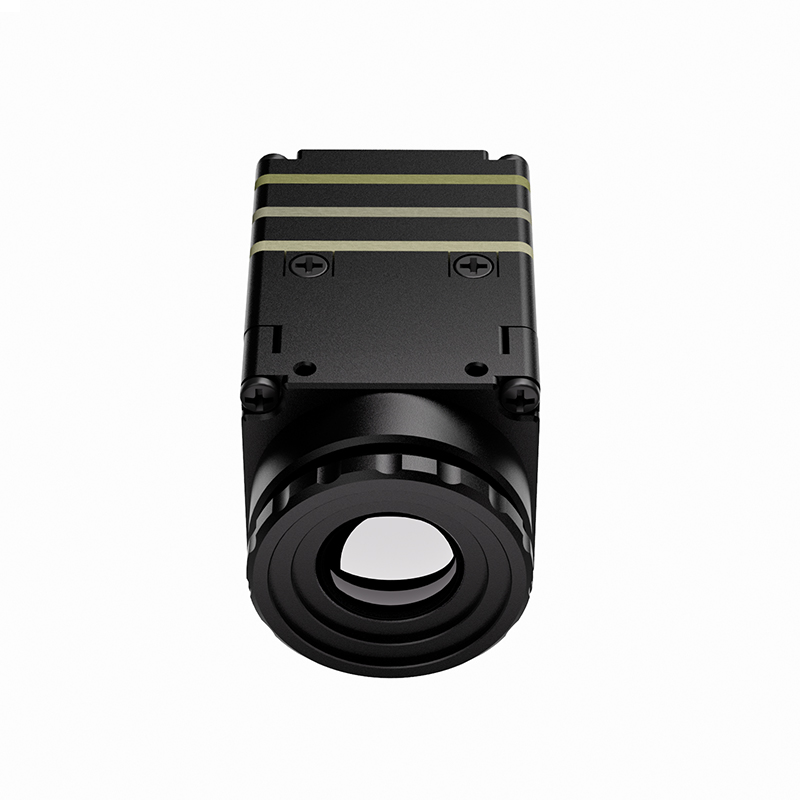

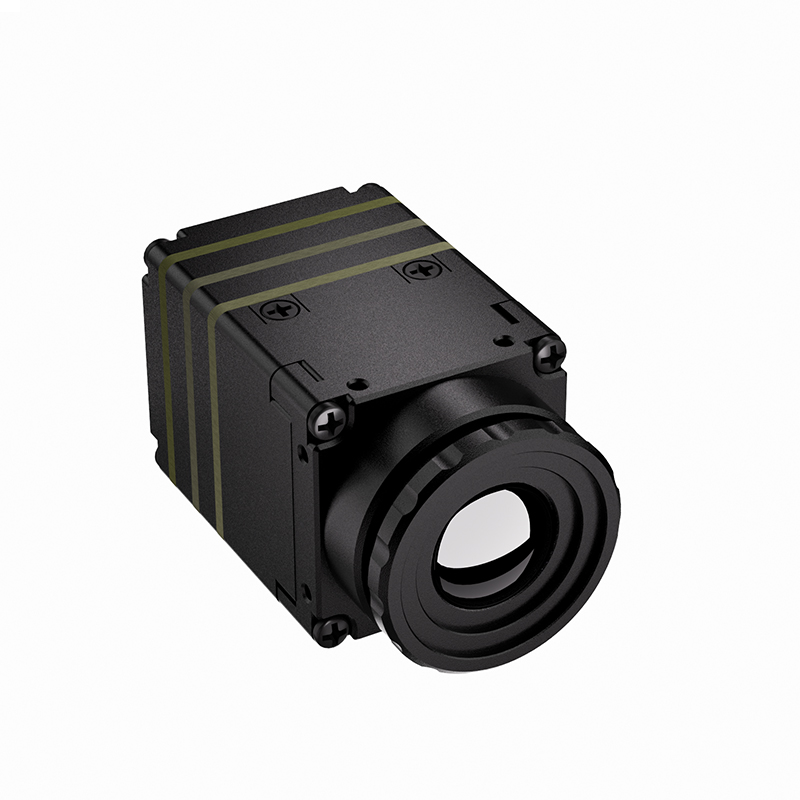

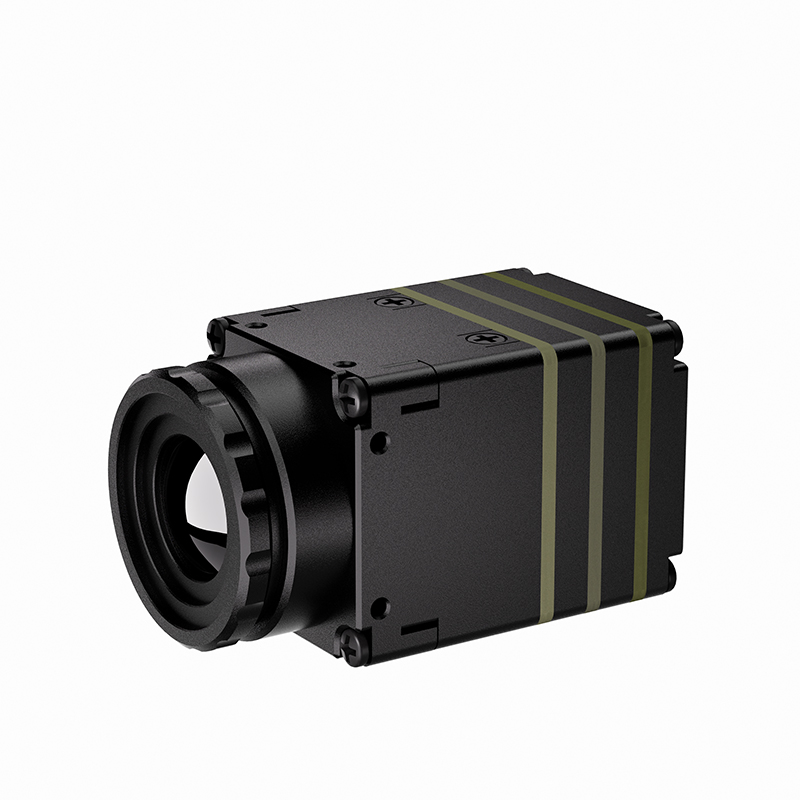

P6 Series 640×512 9mm Thermal Imaging Module (CVBS + USB Dual Interface)

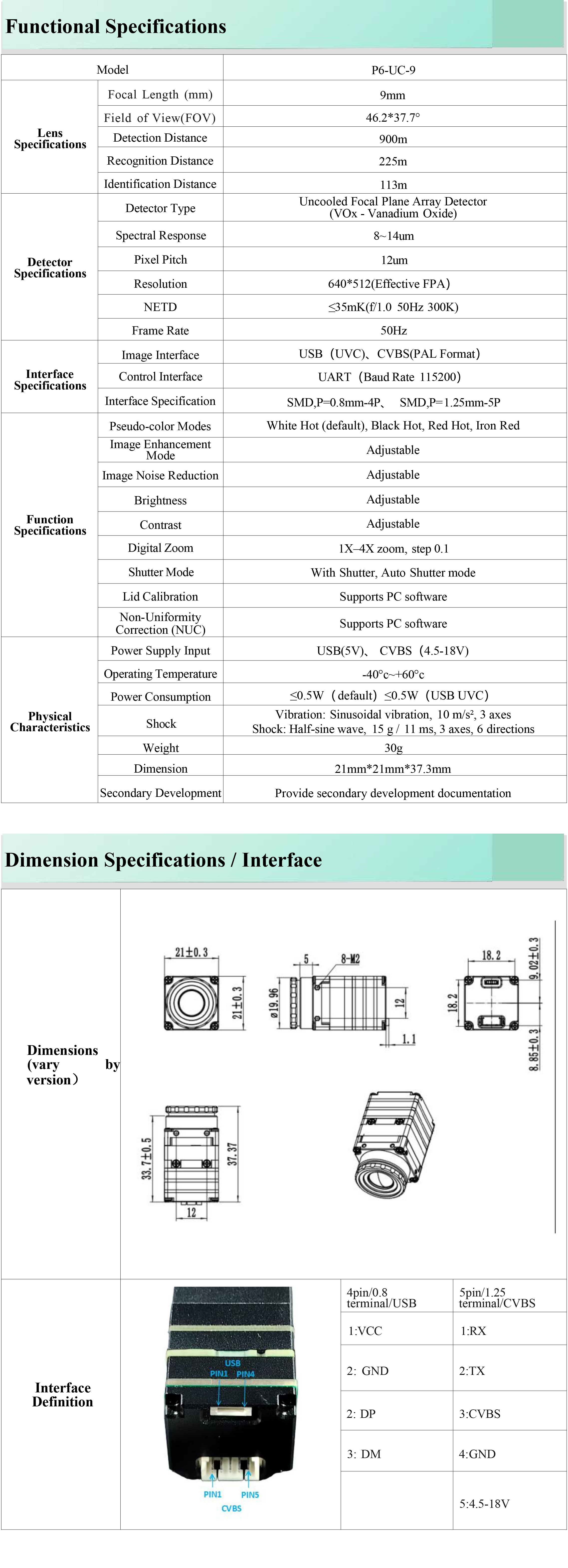

Key Features:

Resolution: 640×512 pixels, providing clear thermal imaging.

Lens: 9mm focal length, field of view 46.2°×37.7°.

Detection Range: Up to 900 meters, with a recognition distance of 225 meters.

NETD: ≤25mK (@F1.0, 50Hz, 300K), ensuring high sensitivity.

Frame Rate: 50Hz, suitable for real-time applications.

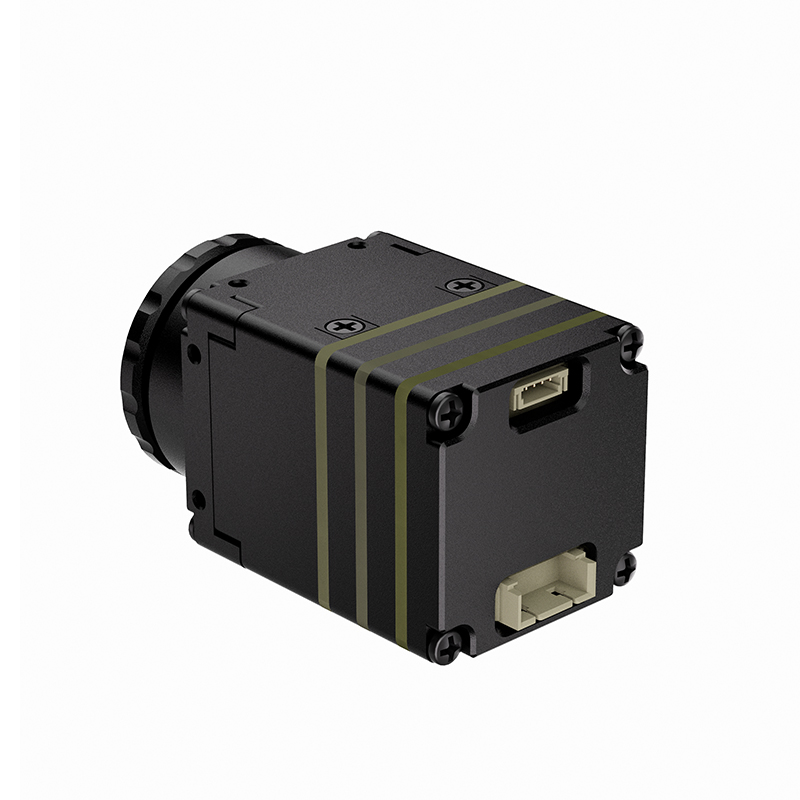

Interface: CVBS+USB video output, UART (115200) control interface.

Operating Voltage: 4.5–18V, wide compatibility.

Operating Temperature: -40°C ~ 60°C, reliable in harsh environments.

Compact and Lightweight: Dimensions 21mm × 21mm × 37.3mm, weight 30g.Additional Features:

Adjustable brightness, contrast, and electronic zoom (1×–8×).

Supports automatic and manual gain control, and image enhancement modes.

Robust design with 15g shock resistance for 11ms impacts.

Flexible integration for custom projects and development.

Applications:
Industrial monitoring, security surveillance, research & development, and UAV/robotic integration projects.
